These All-Aluminum snapframe lightboxes will bring to life any image printed for backlit light boxes.  Using LED edge-lit technology, these frames are energy efficient, and cool running. For use with graphic sizes ranging from 11″ x 17″ up to 52″ x 100″.

SKU: N/A Category:


Our 30mm Snap Frame Light boxes are designed for larger size graphics, and are constructed for maximum durability without sacrificing style.
Using high Efficiency, high brightness LED technology, these light boxes feature high brightness and low power consumption in a lower depth frame profile than traditional fluorescent light boxes. The use of a unique acrylic diffusion panel creates a more even brightness across entire graphic surface without shadowing or bright and dim spots.
The aluminum snap frame design features precision mitered corners for an elegant look, and spring loaded covers to facilitate the quick changing of graphics without any tools or removal from installed location.


For use with graphics printed on translucent film materials only.
When sizing, overall frame size is: graphic size + 1.75″


– Beautiful mitered corners
– Spring loaded frame covers for easy insertion
– Precision mitered aluminum frames, 1-1/4″ wide, 1-1/4″ deep
– Accepts translucent film graphics up to 1/16″ thick
– Clear or Matte overlay lens included
– 4 thru-frame mounting holes
– Included Wall mounting hardware
– Long life LED lamps (up to 50,000hrs.)
– Powered by UL listed 12vdc Adaptor

UL Certification UL cUL File #E480375


Frame, Color:*

– S Satin Silver
– B Matte Black Powder Coat

*Silver costs less than black.

LED Color:**

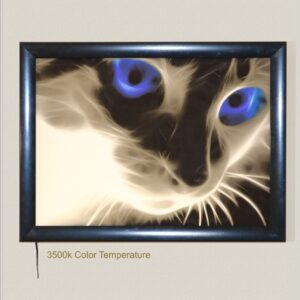

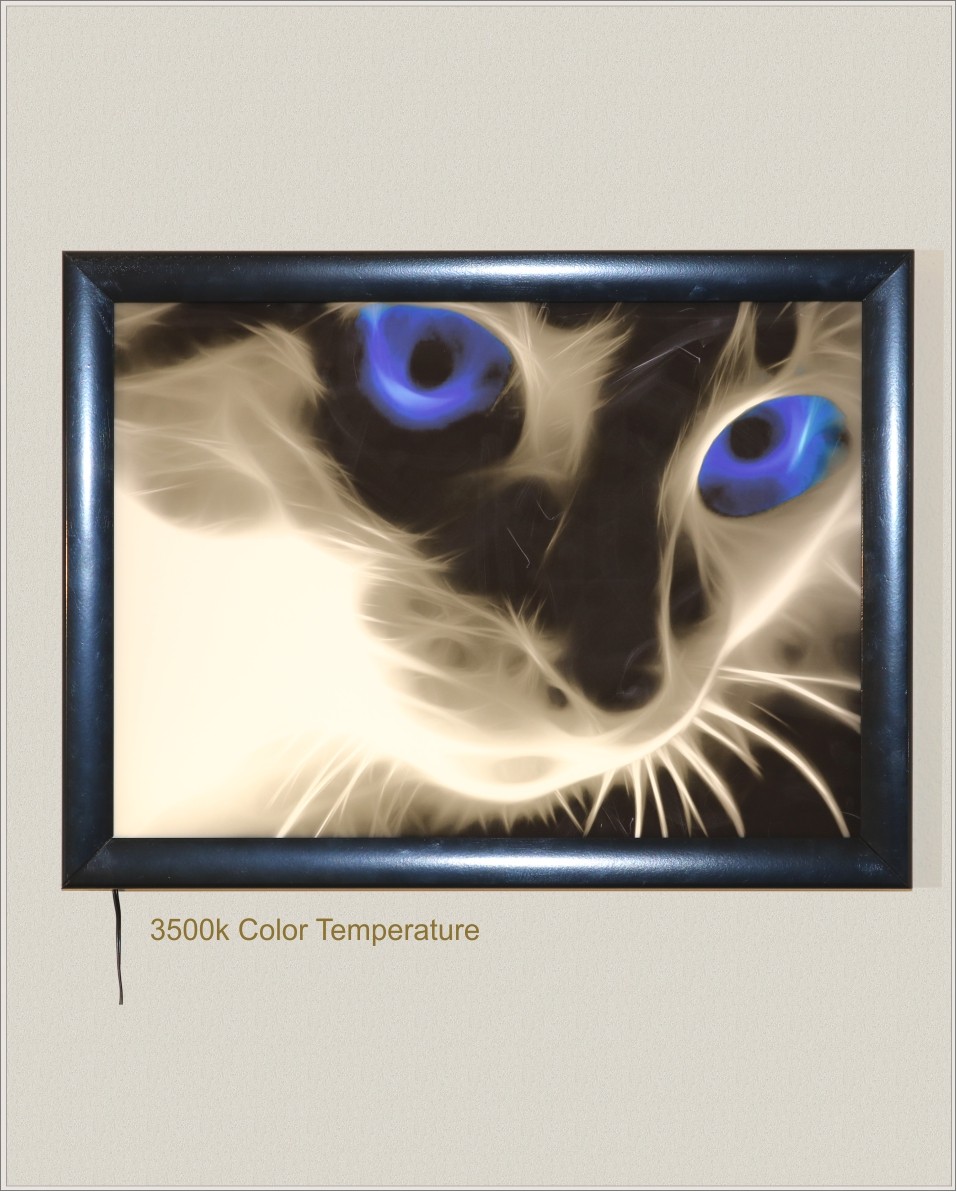

– 3500k-4000k Warm White
– 4000k-4500k Natural White
– 5500k-6000k Cool White

**Color does not affect Price

Transparent Graphic Cover:***

– Gloss Clear
– Non-Glare Clear

***Gloss Cover costs less

Live area: 3/8″ margin covered on all sides of graphic.

For Custom sizes and frame colors, please give us a call!


Typical Specifications

Material Optical-Grade Cast Acrylic
Acrylic Thickness 6mm, 8mm
LED Color 3500k, 4000k, 6000k
LED Life <50,000 hrs
Input Voltage 12VDC
Power Consumption ~4w P/Ft (per edges lit)
Use Indoor, Dry Locations
Warranty 1 Year Limited


30mm frame profile


Snap Frame Overview
Our Snap Frame lightboxes are edge lit on two sides using LED lights installed into an aluminum frame profile that helps LEDs stay cool extending their life. By way of a special laser engraving process, the light is cast out evenly across the entire acrylic panel surface. Each light box comes with a 5 foot power cable with a 2.1mm x 5.5mm barrel connector.

Overall frame size is determined by taking desired graphic size and adding 1.75”. (Example:  A 11 x 17 graphics image will have an overall frame size of 12.75” x 18.75”).  0.375” around the edge of the printed graphic is hidden under the frames snap cover.

Power Supplies
Standard power supply is a 12vdc, 60 watt plug and play with a 2.1mm barrel connector. A 24w supply for small frames and 90w supplies are also available.

Typical Brightness
(8mm panel measured at panel surface.)
12” wide 2 edge lit panel is ~ 5000Lux
24” wide 2 edge lit panel is ~ 2700Lux
36” wide 2 edge lit panel is ~ 2100Lux
48” wide 2 edge lit panel is ~ 1600Lux

UL cUL File #E480375
